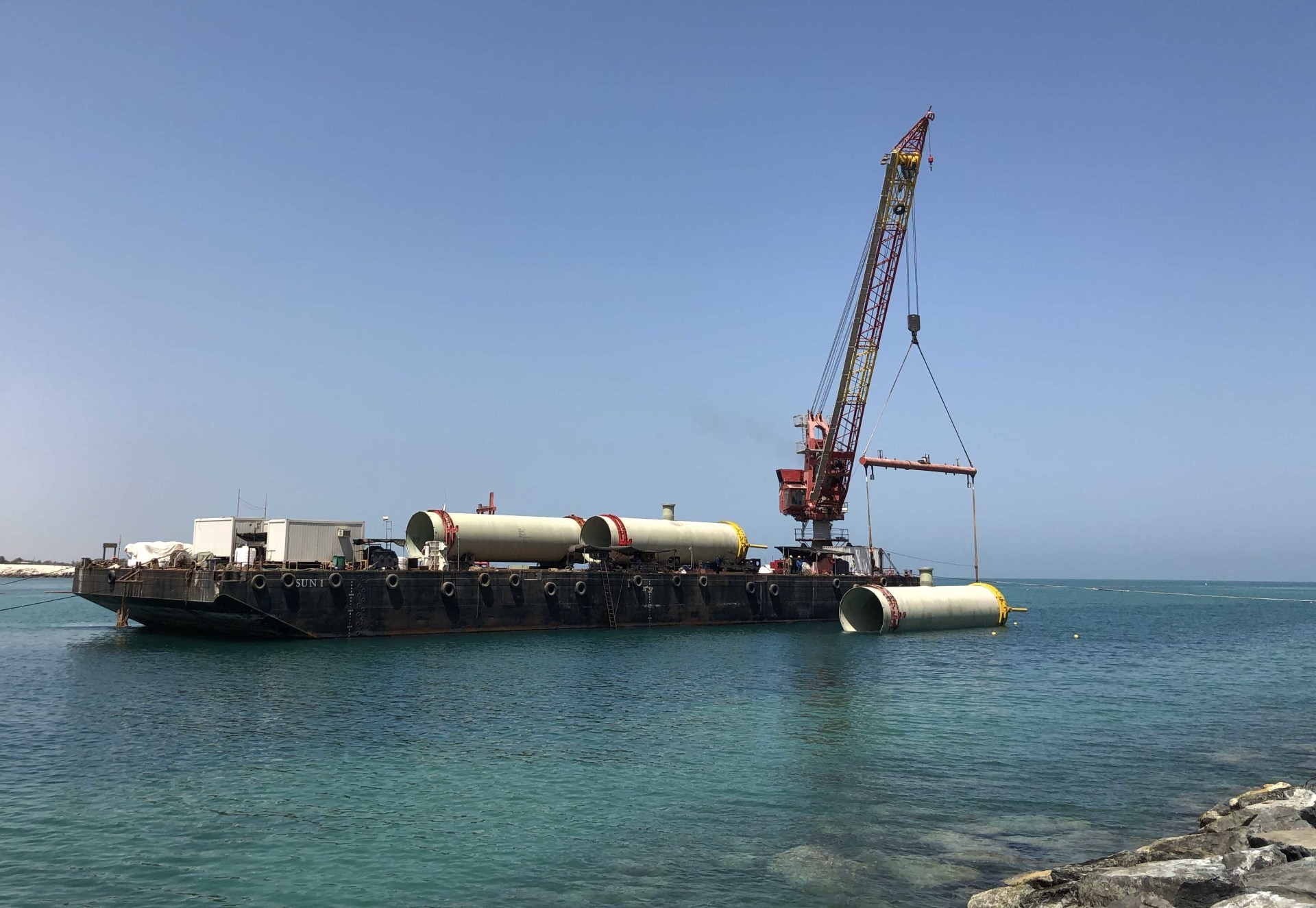

Deck barge

The main ship equipment is 5000-ton full-slewing crane ship, hoisting pipe-laying ship, large cable-laying ship, self-propelled load-handling transport ship and other types of marine engineering ships.



Basic elements

. Ship name: SUN1

. Main scale: (L) 76.2m x (B) 24.38m x (D) 5.5m

. Homework draft: 4.3m

. Self support: Unmanned

. Airline area: A1/range barrier A4/deck barrier

. Classification: CCS

. Main uses: loading, transportation, lifting, installation



Main marine equipment

Main generator

. Rated power/quantity: 880kW * 2 Electrical system: 440V/60Hz

Auxiliary generator

. Rated power/quantity: 280kW * 1 Electrical system: 440V/60Hz

Deck lifting equipment

Crane

. Main hook lifting weight/span: 60t/(6.85-11.88) m

. Auxiliary hook lifting weight/height: 10t/36.6m



Anchoring equipment

Drawworks

. Rated tension/quantity: 250KN * 4

. Wire rope diameter: Φ 36 mm length: 300 m

Keyword: Deck barge
